What Are IMO Tiers?

The International Maritime Organization (IMO) has set emission standards under MARPOL Annex VI to reduce harmful pollutants, including nitrogen oxides (NOx) and, to a lesser extent, particulate matter (PM). These standards are categorized into Tiers I, II, and III and depend on engine power, vessel size, and operating area.

IMO Tier I (2000)

1. Introduced: January 1, 2000.
2. Purpose: Establish baseline NOx limits for marine engines.
3. Applicable Engines: Diesel engines rated at 130 kW (174 HP) or more.
4. Impact on Small Boats:
   1. Recreational boats and engines below 130 kW were largely exempt.
   2. Compliance for larger engines involved simple optimizations like better tuning.

1. Introduced: January 1, 2011.
2. Purpose: Reduce NOx emissions by about 20% compared to Tier I.
3. Applicable Engines: Diesel engines rated at 130 kW or more, built after this date.
4. Impact on Small Boats:
   1. Minimal for recreational boats under 24 meters or with engines below 130 kW.
   2. Commercial vessels with larger engines faced stricter requirements.

1. Introduced:
   1. January 1, 2016: For North American and U.S. Caribbean NECAs.
   2. January 1, 2021: For North Sea and Baltic Sea NECAs (affecting UK waters).
2. Purpose: Significantly reduce NOx emissions—80% reduction compared to Tier I.
3. Applicable Engines:
   1. Diesel engines rated at 130 kW or more, built or significantly modified after the NECA implementation date.
   2. Vessels with combined propulsion power below 750 kW (1,006 HP) may qualify for exemptions if compliance is impractical.

What Are NECAs and How Do They Affect UK Waters?

NECAs (NOx Emission Control Areas) are specific regions established by the International Maritime Organization (IMO) under MARPOL Annex VI where stricter limits on nitrogen oxides (NOx) emissions from marine engines are enforced. These zones are designed to reduce air pollution, particularly in areas with high maritime traffic and sensitive ecosystems.

1. North American NECA: U.S. and Canadian coastal waters, including the Great Lakes.
2. U.S. Caribbean Sea NECA: Puerto Rico and the U.S. Virgin Islands.
3. North Sea NECA: Covers waters around the UK, Belgium, Denmark, France, Germany, and the Netherlands.
4. Baltic Sea NECA: Covers waters near Sweden, Finland, Estonia, and Poland.

The North Sea NOx Emission Control Area (NECA) covers a significant portion of the waters surrounding the UK and neighboring countries, enforcing stricter NOx emission limits to improve air quality and protect the environment.

For UK waters, this includes the eastern coastline from the northern tip of Scotland down to the English Channel. Major ports such as London (via the Thames Estuary), Dover, Southampton, Hull, and Newcastle fall within the NECA’s boundaries, making these areas subject to IMO Tier III compliance requirements for larger vessels and newer engines.

The NECA extends across the entire North Sea, including international waters bordered by Belgium, the Netherlands, Germany, Denmark, and Norway. It also covers parts of the English Channel, particularly the eastern section near Dover. Key boundaries include Scotland’s northern coastline to the north, the Skagerrak Strait near Norway to the east, and the waters surrounding the UK’s eastern and southeastern coasts.

What is Aftertreatment, and Why Is It Needed?

SCR

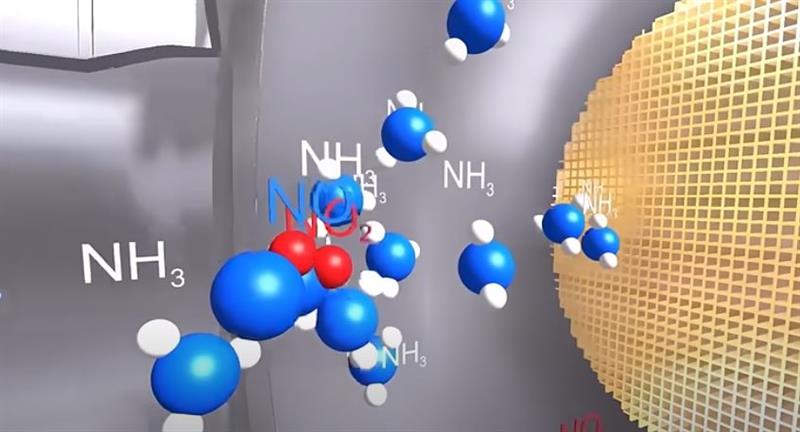

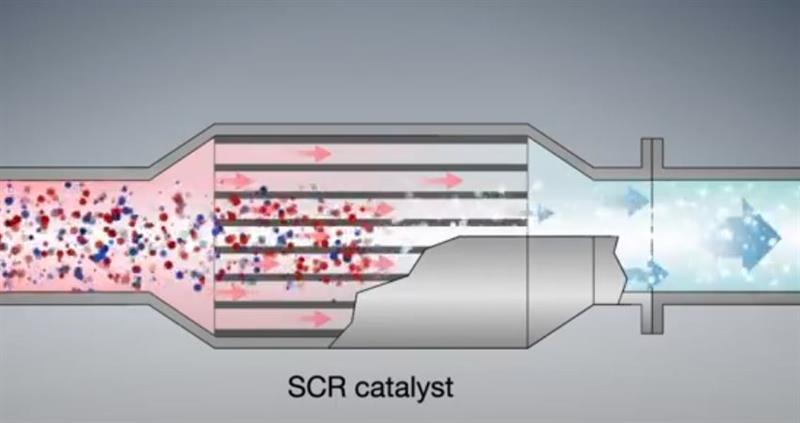

What is a DPFSelective Catalytic Reduction (SCR) is the primary technology for meeting Tier III NOx limits. It injects a urea-based fluid into the exhaust stream, where a catalyst converts NOx gases into harmless nitrogen and water.

Rebuilding and Repairing Pre-Tier I Engines

Lancing Marine offers specialized services to rebuild and repair pre-Tier I engines, extending their operational life for recreational and commercial boats. Rebuilding is practical for low-powered engines, heritage boats, and especially vessels operating in non-NECA waters.

Summary

IMO regulations don’t have to be a burden. Whether it’s selecting the right engine, understanding SCR and DPF needs, or rebuilding an older engine, Lancing Marine is here to help. Contact us today for expert advice and tailored solutions!
