Technodrive

Posted: 29 April 2023

Welcome to Technodrive Marine, a leading manufacturer of high-quality marine gearboxes designed for the most demanding marine applications.

Technodrive gearboxes are engineered to provide reliable and efficient performance, ensuring that your vessel operates at its best. Our Technodrive marine gearboxes come in a range of types, including the TM and TMC series, which are suitable for pleasure craft and work boats.

We also offer the TMG and TMD series, which are ideal for commercial and heavy-duty marine applications. Our gearboxes boast a wide range of torque capacities, from 0.73 hp/100-rpm (70 Nm) to 15.00 hp/100-rpm (1,390 Nm), ensuring that there is a gearbox to suit every need.

These gearboxes are made from the highest quality materials and are designed to withstand the harshest marine environments, making them the perfect choice for any vessel.

SMALL MECHANICAL GEARBOXES

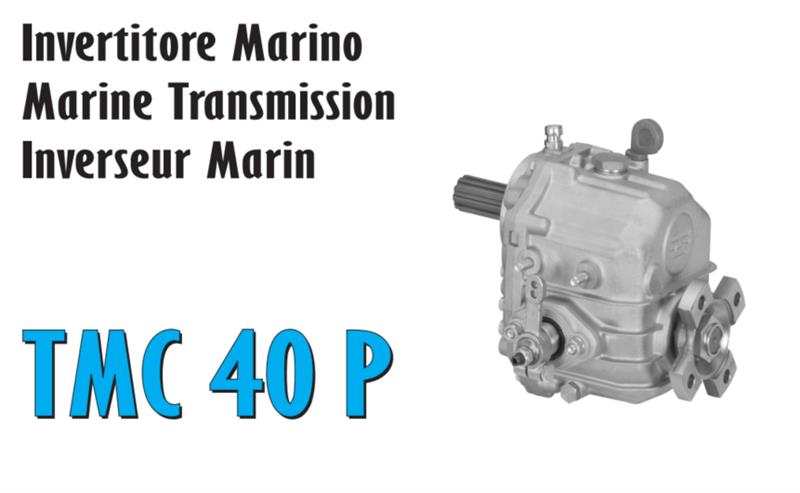

TMC 40P - 1.0hp/100rpm, max 4500-rpm, Ratios 1.45 to 2.60:1

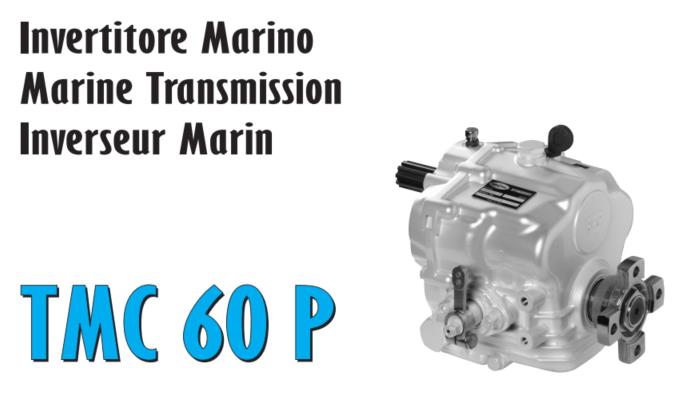

TMC 60P - 2.0hp/100rpm, max 5000-rpm, Ratios 1.55 to 2.83:1

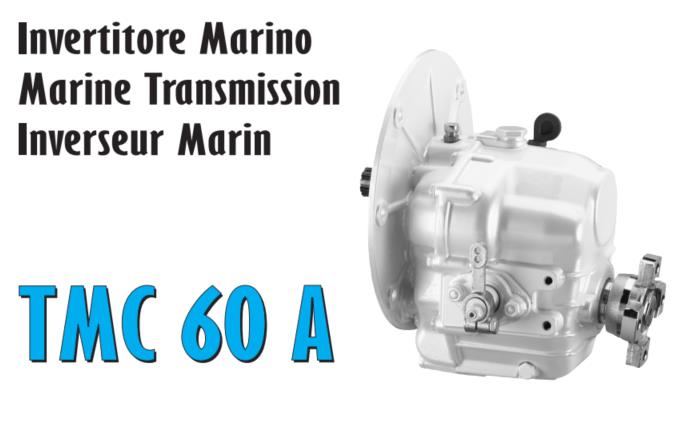

TMC 60A - Angle-drive (7°), 2.0hp/100rpm, max 4500-rpm, Ratios 2.00 to 2.45:1

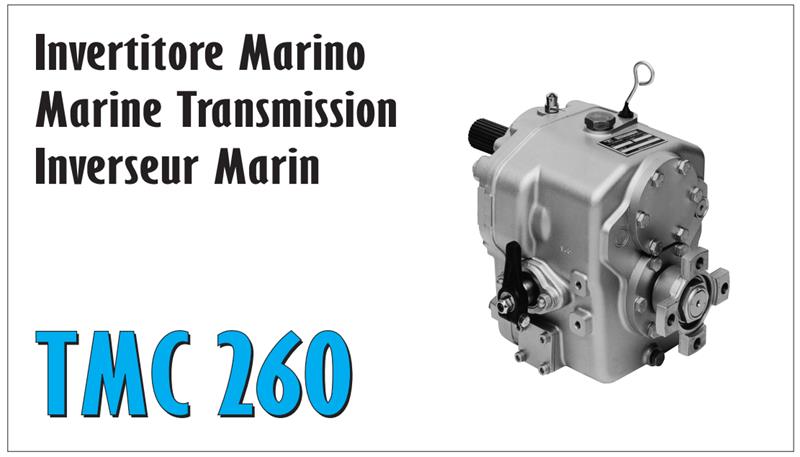

TMC 260 - 3.0hp/100rpm, max 5000-rpm, Ratios 1.54 to 2.88

Lancing Marine TECHNODRIVE Gearbox Pricebook

HYDRAULIC GEARBOXES

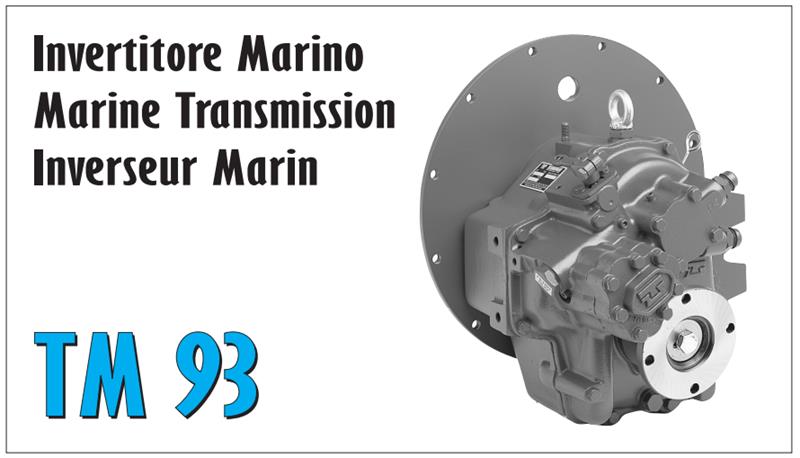

TM 93 - max 4500-rpm, Ratios 1.51 to 2.77:1

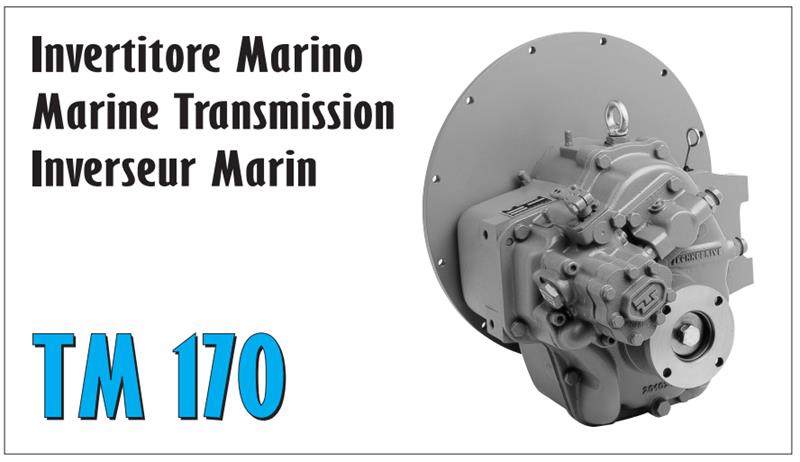

TM 170 - max 4000-rpm, Ratios 1.50 to 2.94:1

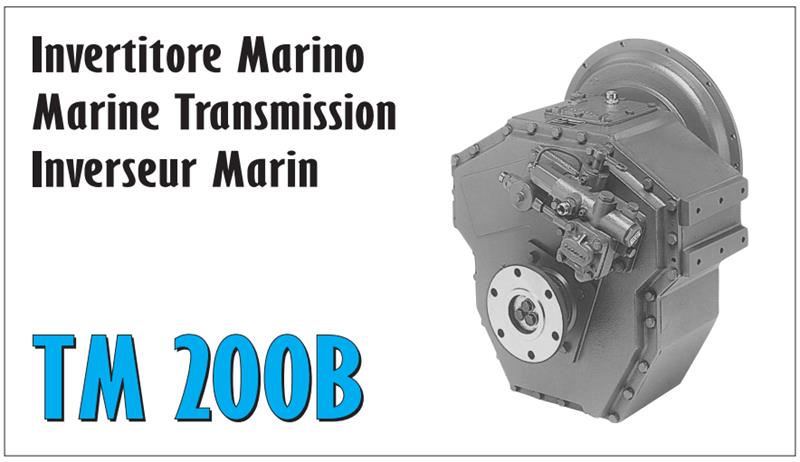

TM 200B - max 3000-rpm, Ratios 3.60 to 4.48:1

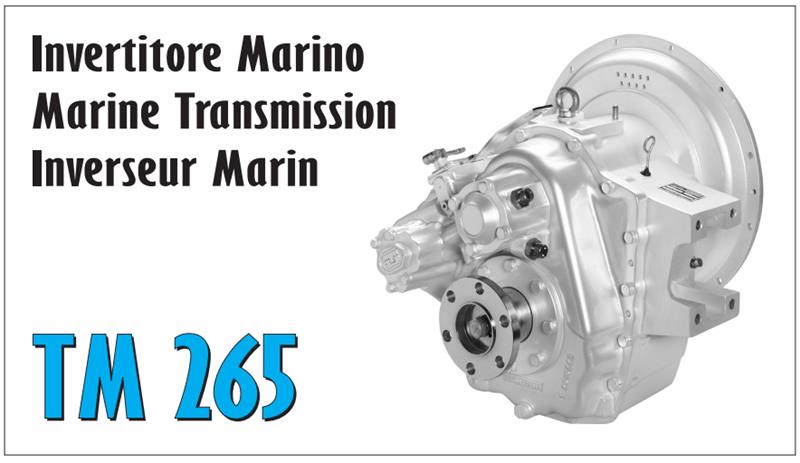

TM 265 - 14.8 HP/100-rpm, max 3000-RPM, Ratios 1.17 to 2.82:1, SAE 1, 2, 3 Bell Housings.

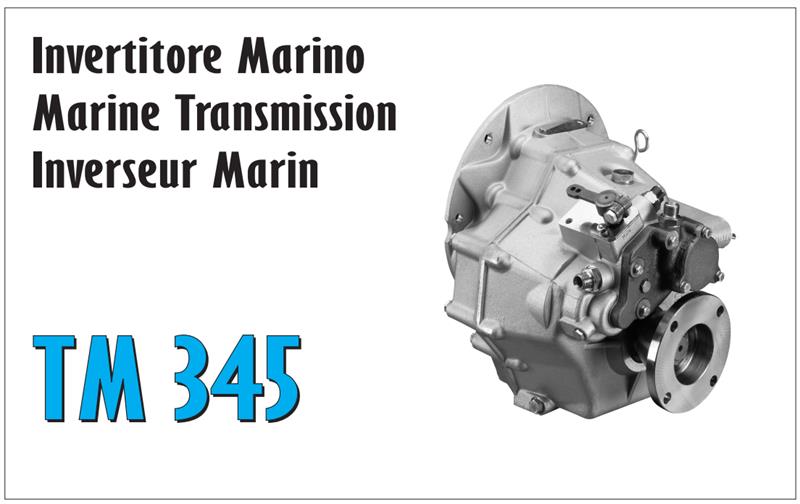

TM 345 - 4.8hp/100-rpm, max 4500-rpm, Ratios 1.54 to 2.47:1

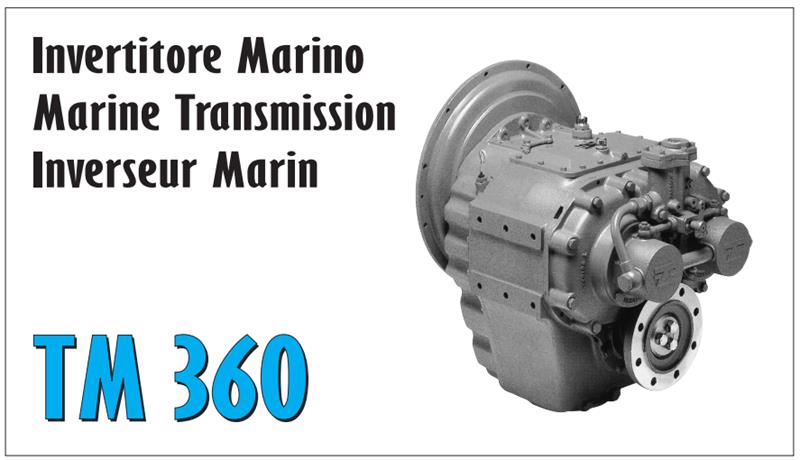

TM 360 - max 2600-rpm, Ratios 3.00 to 5.00:1

Lancing Marine TECHNODRIVE Gearbox Pricebook

HYDRAULIC ANGLE DRIVE GEARBOXES

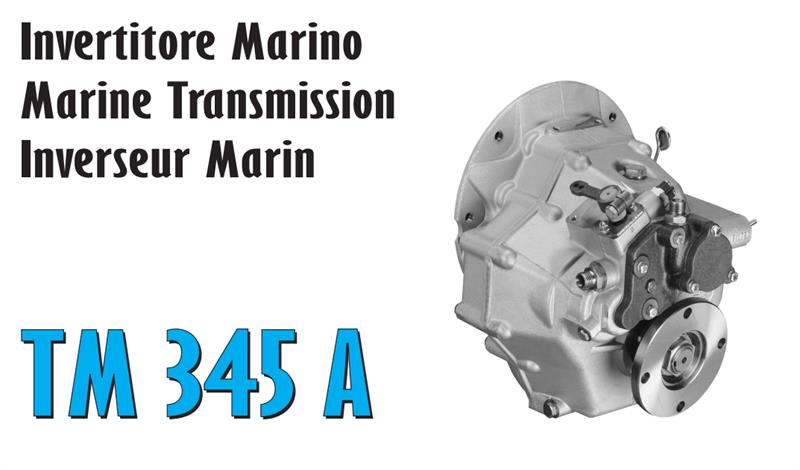

TM 345 A - Angle-drive (7°), Ratios 1.54 to 2.47:1, max 4500-rpm

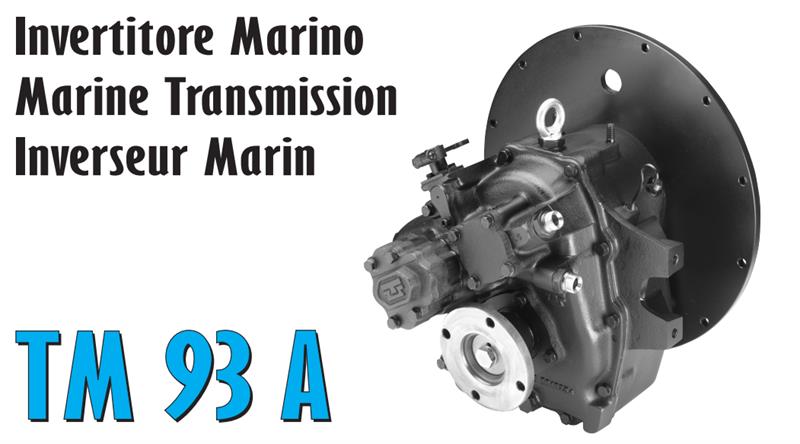

TM 93 A - Angle-drive (7°), Ratios 1.51 to 2.41;1, max 4500-rpm

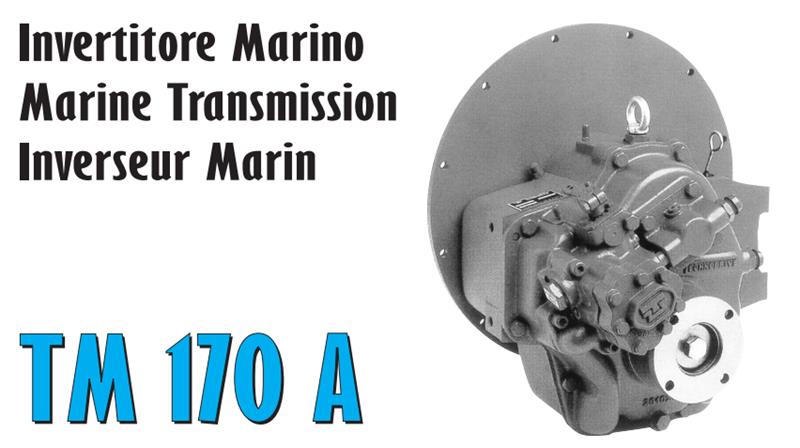

TM 170 A - Angle-drive (7°), Ratios 1.53 to 2.94:1, max 4000-rpm

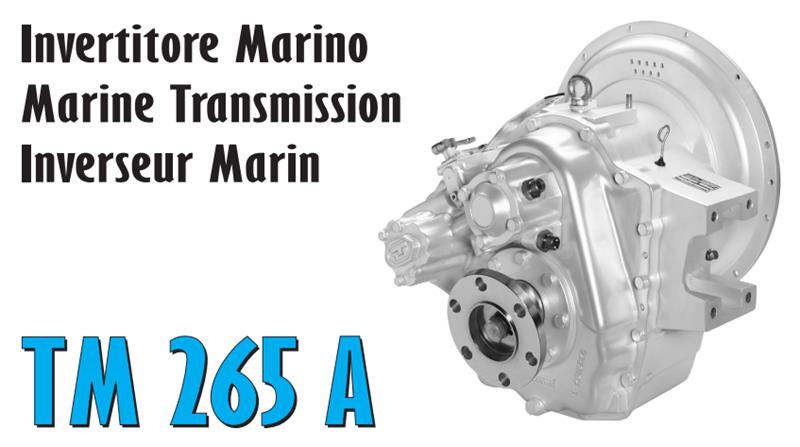

TM 265 A - Angle-drive (7°), Ratios 1.17 to 2.82:1, max 3000-rpm

TM345A - Angle-drive (7°), Ratios 1.17 to 2.82:1, max 3000-rpm

TM 485 A1 - Angle-drive (7°), Ratios 1.51 to 2.40:1, max 4500-rpm

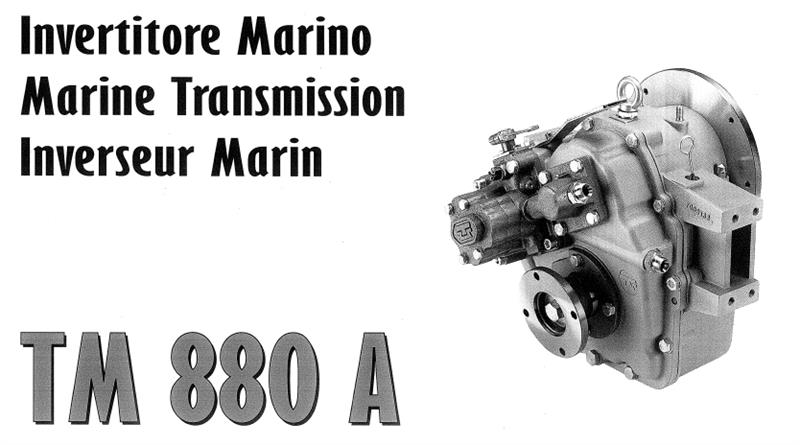

TM 880 A - Angle-drive (7°), Ratios 1.53 to 2.60:1, max 4000-rpm

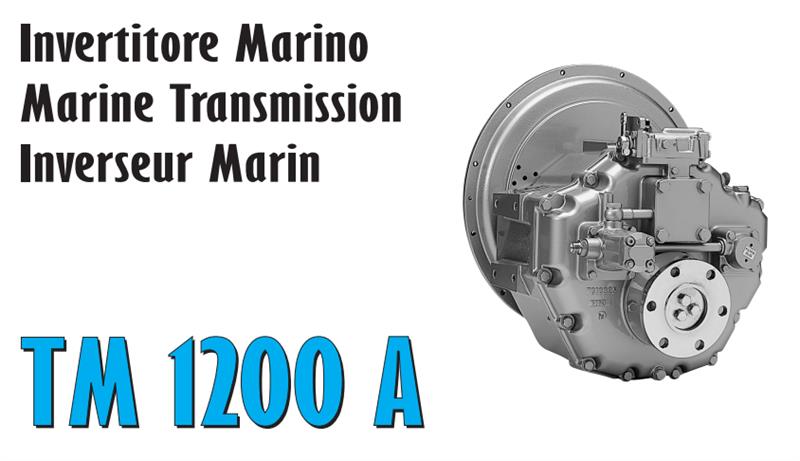

TM 1200 A - Angle-drive (7°), Ratios 1.44 to 2.30:1, max 3200-rpm

Lancing Marine TECHNODRIVE Gearbox Pricebook

SAILDRIVES AND ELECTRIC DRIVES

SP 60 - Saildrive, 2.15 & 2.38:1 Reduction options. 2.1-hp/100-rpm, 18-IN max prop diameter.

SEAPROP60 - Hybrid Electric Saildrive. 2.1 hp/100-rpm, 5KW assist, 48V DC Supply Voltage.

BLUEDRIVE - Hybrid Electric Drive for 60 to 150-hp engines. 6KW assist, 96V DC Supply Voltage.

Lancing Marine TECHNODRIVE Gearbox Pricebook

TECHNODRIVE DUTY CLASSIFICATIONS

P Pleasure Craft

Intermittent operation with very large variation in engine speed. Maximum power capacity is intended only for personal use, planing hull pleasure craft where full engine throttle operation will be less than 10% of the total time with balance of time at 80% of full throttle engine RPM or less. Annual operating hours up to 500. (For TMC transmissions 300 hours/year)..

I Intermediate Duty

Full throttle operation will average only a few hours per day with major portion of usage at partial throttle and total annual usage of 2000 hours or less.
